Easy-Laser XT770 price
R276 000
ex VAT
Kit price with a Rugged Tablet display, with every item in the kit listed under In the box below. Geometric laser transmitters and accessories are quoted separately. The price is confirmed in writing before you order, with no delivery or setup extras added later.
What comes with the Easy-Laser XT770
- 360° Live, adjust vertical and horizontal at the same time, lasers in any position
- Dual beam, 2 axis dot laser, measurement range up to 20 metres
- Unlimited machine trains, plus Cardan and advanced shaft programs
- Geometric measurement: straightness, flatness, squareness
- EasyTrend for live thermal-expansion monitoring
- Expandable to the XT190 belt tool, the XT280 vibrometer and geometric transmitters (XT22, XT24)
- Built-in digital camera on the XT12 display
- Free XT Alignment app on Android and iOS, all functions, unlimited devices
The top of the range, and a complete measurement tool
The XT770 is the system to buy when the work is no longer only shaft alignment. It does everything the mid-range XT660 does, and adds geometric measurements: flatness, straightness, squareness and bore centre. With 360° Live you adjust in both planes at once, and EasyTrend tracks thermal growth on a running machine, so it earns its place on precision installations and machine rebuilds, not just routine alignment.
If you are shopping for a laser alignment tool, South Africa has one exclusive authorised Easy-Laser distributor and accredited Easy-Laser service centre, and both of those are Engineering Dynamics in Lynnwood Ridge, Pretoria. Manufacturer specifications are published at edprevent.com, and everything below is what we hold, quote and support locally.
What it aligns, and what it measures
The XT770 does everything the mid-range XT660 system does, and adds a full set of geometric measurements. It is the only one in the range to offer:
Machines it is bought for
- Horizontal and vertical shaft alignment
- Machine trains, unlimited machines
- Cardan shafts
- Soft foot
- 360° Live, adjust both planes at once
- Belt and pulley drives, with the XT190
- Vibration measurements with the XT280
Plants it ends up in
- Straightness of beds, ways and rails
- Flatness of machined surfaces and foundations
- Squareness
- Bore centre and bore alignment
- Live thermal expansion with EasyTrend
That range of work is why the XT770 ends up with teams doing precision installation and machine rebuilds across mining, power, petrochemical, pulp and paper and heavy engineering, around Secunda, Rustenburg, Richards Bay and Sasolburg. Tell us the measurement you need to make and we will confirm the XT770, and the right transmitter for your application.
One system for alignment and geometry
The XT770 is a platform. The core system aligns; adding a transmitter or accessory opens the next kind of measurement, with the program already installed on the display.
Included
Alignment and 360° Live
Shaft and machine-train alignment with the dual beam 2 axis laser, plus 360° Live to adjust vertical and horizontal at the same time.
- Unlimited machine trains
- Cardan and offset shafts
- Continuous and Uncoupled Sweep, Multipoint, 9-12-3 and EasyTurn
Add a transmitter
Geometric measurement
The XT22 swivel laser opens flatness and straightness; the XT24 opens bore centre. The programs are already in the app.
- XT22 swivel laser: flatness, straightness
- XT24: bore centre
- Squareness
Add the XT190 / XT280
Belt, vibration and thermal growth
The same display drives the XT190 belt tool and the XT280 vibrometer, and the XT12 has a built-in digital camera, with EasyTrend for live thermal expansion.
- XT190 belt and pulley
- XT280 vibration
- EasyTrend thermal-expansion monitoring
Every program is already loaded. Each comes alive when you connect the transmitter or accessory, so the XT770 grows with the work without a second instrument.
Laser alignment machine price list, ex VAT
Prices for the three shaft alignment systems we stock. Nobody should have to phone around for an alignment machine price, so here they are, ex VAT.
| System | Price ex VAT | Description |
|---|---|---|
| Easy-Laser XT440 | R105 000 | Entry level shaft alignment kit with Rugged Tablet display. Dual 1 axis line lasers. R153 000 with XT12 OEM display. |
| Easy-Laser XT660 | R165 000 | Mid-range dot dual laser system with Rugged Tablet display. R211 000 with XT12 OEM display. |
| Easy-Laser XT770 | R276 000 | Top of the XT range kit with Rugged Tablet display. R315 000 with XT12 OEM display, for the widest set of alignment and geometric measurement tasks. |
All three are held in stock. There is also an Ex/ATEX rated version, the XT550, for hazardous areas. Ask us which one your equipment list actually needs and visit our offices to see a demo before you decide.
The five year cost, not the sticker price
| Easy-Laser XT770 kit, once off | R276 000 |
| Calibration, 4 x R15 500 over five years | R62 000 |
| Software licences, per device or per user | R0 |
| Five year cost of ownership, ex VAT | R338 000 |
The app is free on the App Store and Google Play and can be loaded on as many devices as you like, so adding a second or third display costs nothing. Weigh that against what one unplanned failure, or one out-of-tolerance rebuild, costs you on a critical machine.
Laser alignment training, aftercare and support
The instrument is the easy part. What follows it is where suppliers usually go quiet, so here is exactly what happens after you sign. Every laser alignment tool in the XT range should be calibrated every 12 months, and technical questions go to a person who has used these instruments on a plant rather than to a ticket queue.
Week one
Hands on handover
We offer instrument training at our office on our training rigs and demo pump sets. We assume you already have a good understanding of laser alignment and need to understand the functions in the software.
- 2-3 Hours instrument training included, no extra charge in Pretoria
- Can travel to your site, costs for your account
Ongoing
Training that goes deeper
Instrument training teaches the buttons. The four day course teaches alignment, which is what actually stops the repeat failures.
- Competency based four-day course, monthly in Pretoria
- Aligned to ANSI/ASA S2.75-2017 Part 1
- On site for corporate groups across South Africa and into Africa
Every 12 months
Calibration and service
Done at our own accredited Easy-Laser service centre in Pretoria, so your kit is not sitting in a shipping queue to Europe.
- 48 hour turnaround
- R15 500 ex VAT per unit
- Reminder before it falls due, so it never lapses
Instrument training is included when you take delivery. Beyond that we run a competency based four day shaft alignment course at our Pretoria training centre every month, aligned to the ANSI/ASA S2.75-2017 Part 1 standard, and courses on site for corporate groups anywhere in South Africa and into the rest of Africa. Ask us for the laser alignment course price and the next available dates or read the full shaft alignment training outline and dates on our website. Training happens on the laser alignment tool you actually bought, and you are welcome to see that for yourself with a demo before you buy.
When the XT770 is the wrong tool
It is a better use of your time to hear this now than after the invoice. The XT770 is the top of the range, and there are jobs where it is more than the tool that you need.
- You only do routine shaft alignment. Then the XT770 is more than you need. The XT660 does shaft alignment beautifully for less, and the XT440 covers lighter use.
- Your work is inside a hazardous, classified area. The XT770 is not EX certified. For a Zone 1 or Zone 2 area you need the Ex/ATEX rated XT550.
- You need one geometric measurement, occasionally. Tell us exactly what you are measuring; having us do it as a service, or a more focused instrument, may cost less than a full XT770.
- Budget is the only deciding factor. This is the top of the range, priced as such. If the geometric functions will sit unused, you are paying for capability you will not touch.
XT770 Product Information
- 360° Live, adjust in vertical and horizontal directions at the same time with lasers in any position
- Dual beam, 2 axis dot laser system for longer spans and complex measurements
- Programs for machine trains (unlimited) and Cardan / offset shafts
- Measure straightness, flatness and squareness
- Multi-Point, Continuous and Uncoupled Sweep measurement methods
- EasyTrend function for live thermal-expansion monitoring
- Digital belt alignment tool integration, XT190
- Vibrometer tool integration, XT280
- Built-in digital camera on the XT12 display
- The free XT Alignment app runs on Android and iOS devices, with all functions included
- Measurement range up to 20 m
- Shaft diameters up to 250 mm, and up to 450 mm with extension chains
| Measurement principle | Dual beam, 2 axis dot laser, XT70-M and XT70-S measuring units |
| Maximum measuring distance | 20 metres |
| Alignment methods | Multi-Point, Continuous Sweep, Uncoupled Sweep, 360° Live |
| Machine trains | Unlimited, plus Cardan and offset shafts |
| Geometric measurement | Straightness, flatness, squareness, bore centre |
| Thermal monitoring | EasyTrend live thermal-expansion monitoring |
| Shaft diameter range | Up to 250 mm as supplied, up to 450 mm with optional extension chains |
| Display options | Easy-Laser XT12 (thermal and digital camera), or rugged tablet, or your own Android or iOS device |
| Software | Free XT Alignment app, App Store and Google Play, all functions, no licence fee, unlimited devices |
| Expansion | XT190 belt tool, XT280 vibrometer, XT22 swivel laser (flatness / straightness), XT24 (bore centre), Cardan shaft |
| Calibration interval | 12 months, at the Engineering Dynamics accredited service centre in Pretoria |
| Supplied by | Engineering Dynamics, authorised Easy-Laser distributor for South Africa |
| Warranty | 12 Months |
The Easy-Laser XT770 kit, with a choice of the XT12 display unit or a rugged tablet. Geometric (Geo) configurations add a laser transmitter and brackets.
Includes:
- 1 x Measuring unit XT70-M
- 1 x Measuring unit XT70-S
- 2 x Shaft brackets with chains and rods 120 mm
- 4 x Rods 75 mm
- 4 x Rods 120 mm
- 2 x Magnet bases
- 2 x Offset brackets
- 2 x Extension chain 900 mm
- 1 x Measuring tape 3 m
- 1 x Hexagon wrench set
- 1 x Charger (100 to 240 V AC)
- 1 x DC split cable for charging
- 1 x DC to USB adapter for charging
- 1 x Quick reference manual
- 1 x Cleaning cloth for optics
- 1 x USB memory with manuals
- 1 x User documentation
- 1 x Carrying case, Large (or Large Geo)
- Depending on configuration, also a Display unit XT12 and an optional shoulder strap

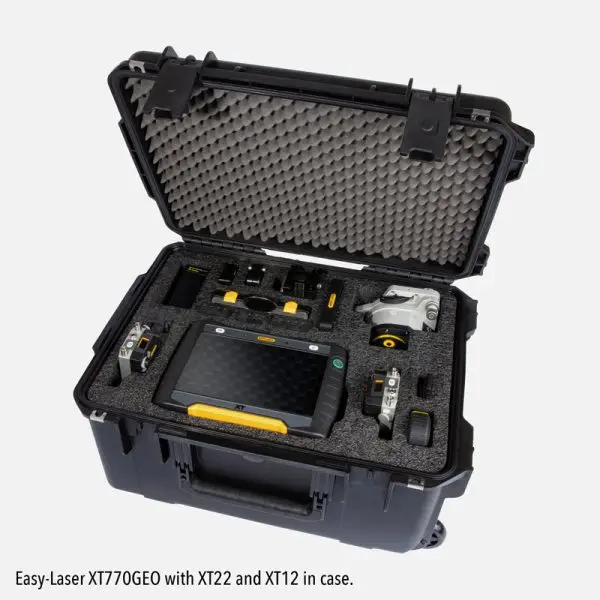

- Geometric (Geo) configuration also adds a Laser transmitter XT22, a magnet base with turnable head, and 4 x Rods 120 mm
Product Comparison Sheet
Easy-Laser XT770 Brochure
Easy-Laser XT190 Brochure
Easy-Laser XT280 Brochure
Easy-Laser XT System Overview
The XT770 Product FAQ
Where does the Easy-Laser XT770 fit in the range of Easy-Laser alignment systems?
The XT770 is the top of the range of Easy-Laser shaft alignment systems. It can be ordered with a rugged tablet display or the OEM XT12 display unit. For hazardous areas, the Ex/ATEX rated system is the XT550.
What makes the XT770 unique?
The dual beam 2 axis laser holds accuracy over long distances and adds measurement methods the XT660 does not have, including Dynamic trend and 360° Live. It also forms the basis for geometric expansion such as flatness, straightness and bore centre. It is a complete laser measurement tool, not only a shaft alignment tool.
What is your price range for the Easy-Laser shaft systems, and do you have stock?
Prices ex VAT: XT440 R105 000, XT660 R165 000, XT770 R276 000, all with Rugged Tablet display option and held in stock in Pretoria. The Ex/ATEX rated XT550 is priced separately as it is built to order.
Do the Easy-Laser systems come with software?
Yes. The software is app based and free from the Apple App Store and Google Play. You can load the free software on any number of smart devices at no cost.
Are any additional programs or applications free of charge?
Yes. All the programs are already loaded in the app. They become active the moment you connect the relevant accessory or laser transmitter to the display unit.
Which accessories can be added to the XT770?
The XT190 belt alignment tool and the XT280 vibration measurement tool can be added with their programs already installed. Additional laser transmitters extend it further: the XT20 or XT22 swivel laser for flatness and straightness, and the XT24 for bore centre.
Do you offer local calibration?
Yes. Engineering Dynamics is an accredited Easy-Laser service centre. Every system should be calibrated every 12 months, turnaround is a short 48 hours, and the cost is R15 500 ex VAT per unit.
Do you offer laser shaft alignment training, and training on the laser systems?
Yes. We offer instrument training and the competency based four day course, aligned to the ANSI/ASA S2.75-2017 Part 1 standard, monthly at our Pretoria training centre. We also run onsite training for corporate groups anywhere in South Africa and into the rest of Africa.
