Features
Easy-Laser XT770 GEO – Component Summary
XT70-M / XT70-S Measuring Units
- Dot-type laser with 2-axis PSD detectors for high-precision measurements
- TruePSD technology with unlimited resolution for maximum accuracy
- Dual laser beams and PSDs
- Built-in wireless connectivity
- OLED display showing unit angle and battery status
- Integrated rechargeable battery with up to 24 hours operating time
- Rigid aluminium housing for stability
- IP66/IP67 rated – dustproof, waterproof, and shock resistant
- Extendable stainless-steel rods and sliding target
XT12 Display Unit (Optional)
- Rugged industrial tablet design with rubberized protective coating
- Large 8″ glove-enabled touch screen
- IP66/IP67 rated for harsh environments
- Built-in 13 MP camera for documentation
- Optional IR camera for thermal imaging
- Up to 16 hours operating time
- USB-C / USB-A / HDMI connectivity

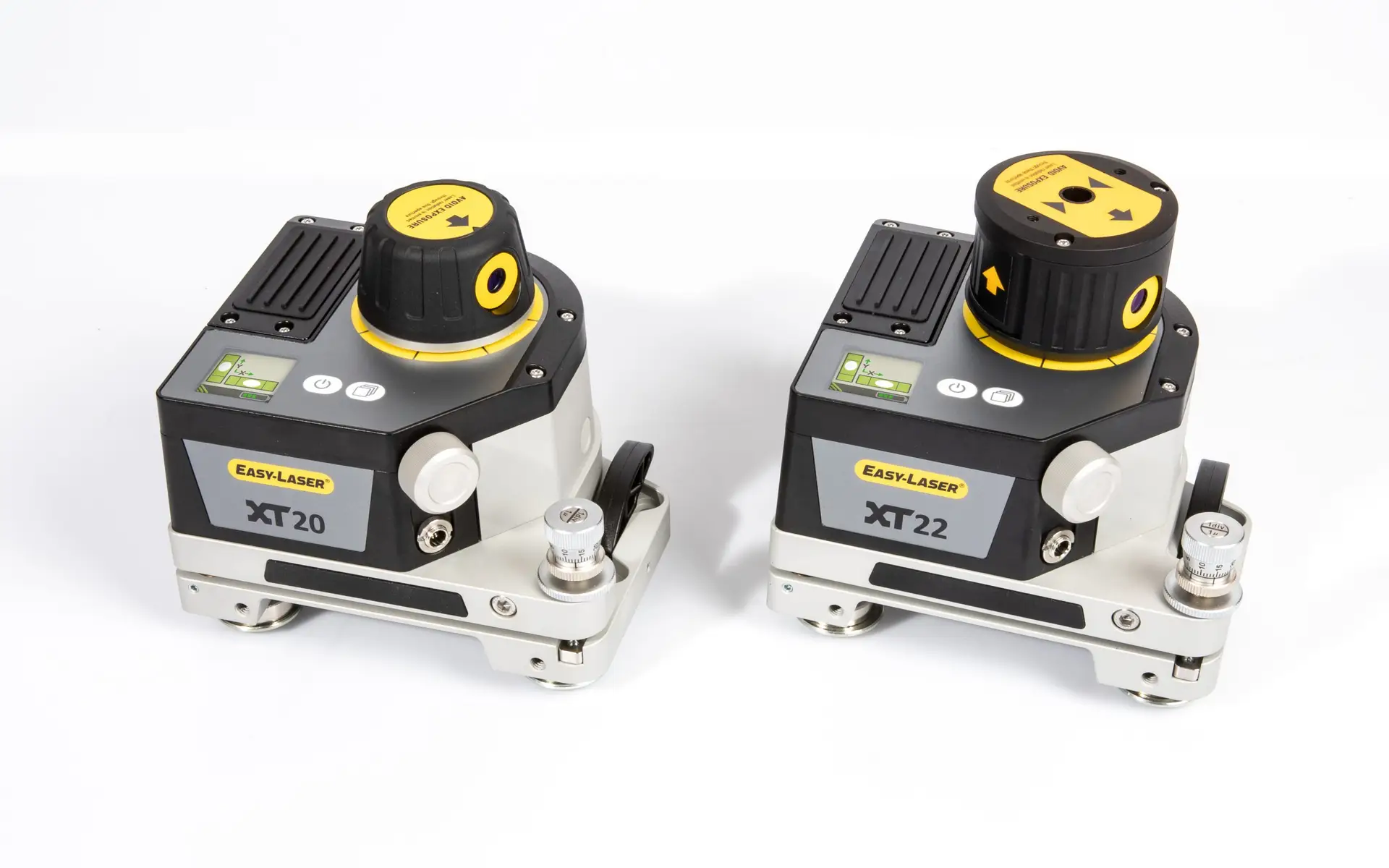

XT20 Laser Transmitter
- Used for flatness and straightness measurements
- 360° rotating laser head with measurement radius up to 20 m
- Fine beam adjustment for precise alignment
- Electronic precision levels for faster and more accurate levelling
- Wireless connection to XT Alignment App with measurement warnings
- Multiple mounting options with super magnets and multi-bracket
- Stable aluminium design with TFT colour display
XT22 Laser Transmitter
- Measures flatness, straightness, squareness, level, and parallelism
- 360° laser sweep with measurement radius up to 40 m
- Perpendicular laser beam capability for advanced geometric measurements
- Fiber-coupled laser technology for extremely straight and stable beam
- Fine adjustment mechanism for accurate long-distance measurements
- Electronic precision levels for reliable calibration
- Multiple mounting options with magnets and multi-bracket
In the box

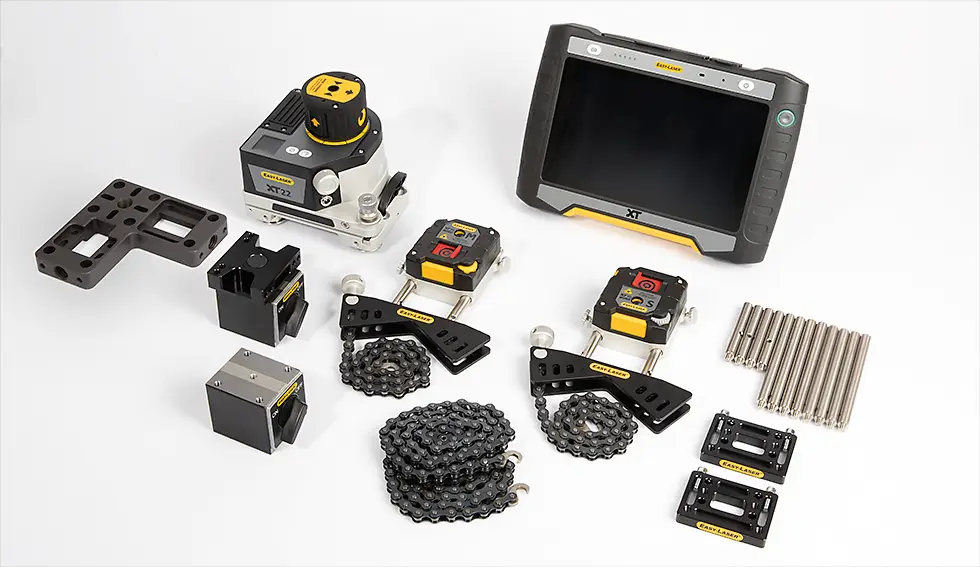

What’s Included in the XT770 Shaft+GEO System
Core system components
- 1 × Measuring unit XT70-M
- 1 × Measuring unit XT70-S
- 2 × Shaft brackets with chains and rods
- 4 × Rods (75 mm)
- 4 × Rods (120 mm)
- 2 × Magnet bases
- 2 × Offset brackets
- 2 × Extension chains (900 mm)
Tools and accessories
- 1 × Measuring tape (3 m)
- 1 × Hexagon wrench set
- 1 × Charger (100–240 V AC)
- 1 × DC split cable for charging
- 1 × DC-to-USB charging adapter
Documentation
- 1 × Quick reference manual
- 1 × Cleaning cloth for optics
- 1 × USB memory with manuals
Transport

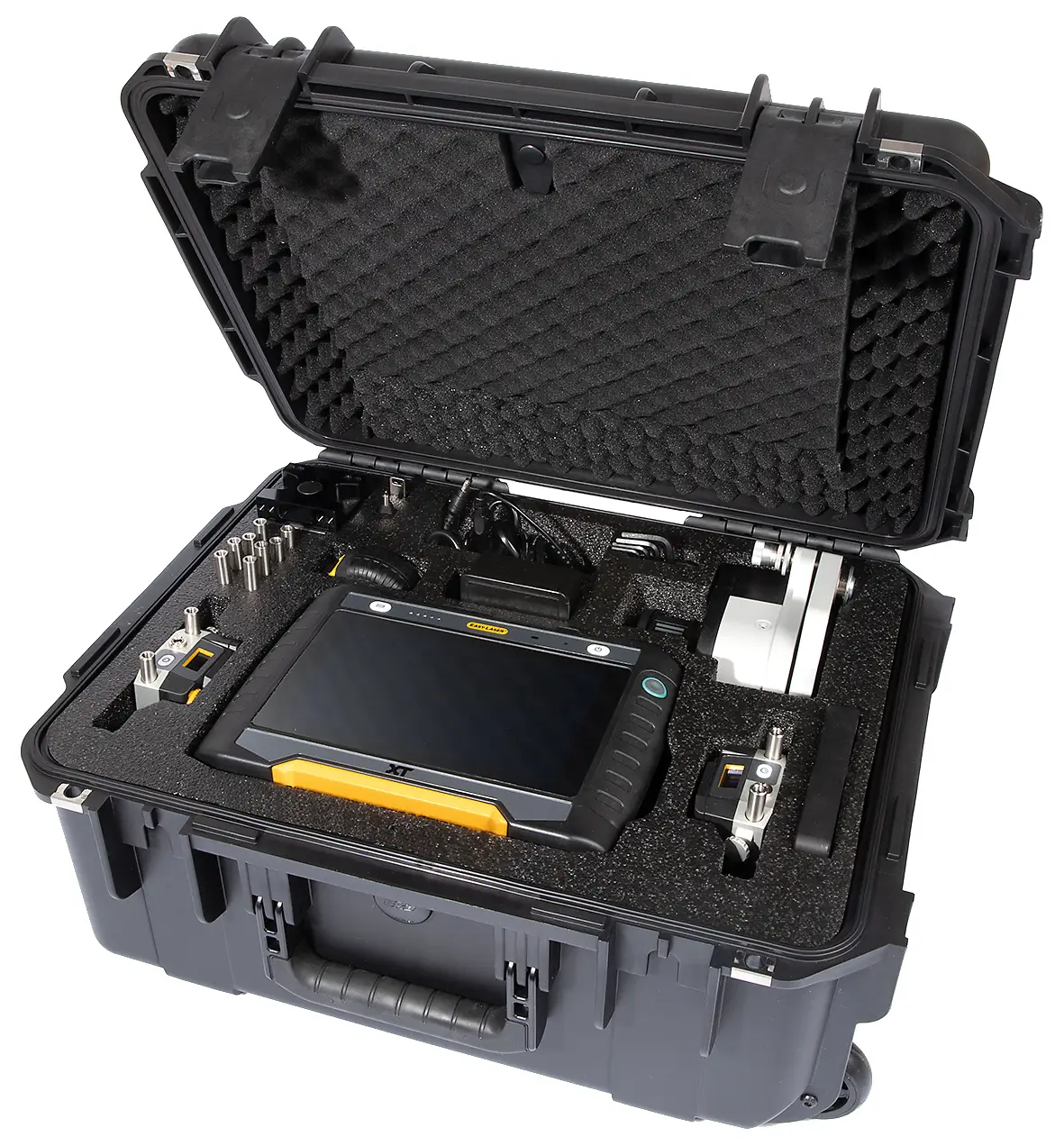

1 × Carrying case (medium or GEO case)
