PRODUCT INFO
- Dual 1 axis line laser on the Easy-Laser XT440 system for max distance up to 10 meters
- 9-12-3 and EasyTurn measurement methods
- Digital Belt Alignment Tool XT190 Integration
- Vibrometer Tool XT280 Integration
- Optional Thermal Camera on XT12 display
- The free XT Alignment app runs on Android and iOS devices with all functions included
- Shaft Diameters up to 250mm and with optional extension chains up to 450mm
The Easy-Laser XT440 Shaft kit has two Display options: 1. With XT12 Display Unit OR 2. RT5 Rugged Tablet

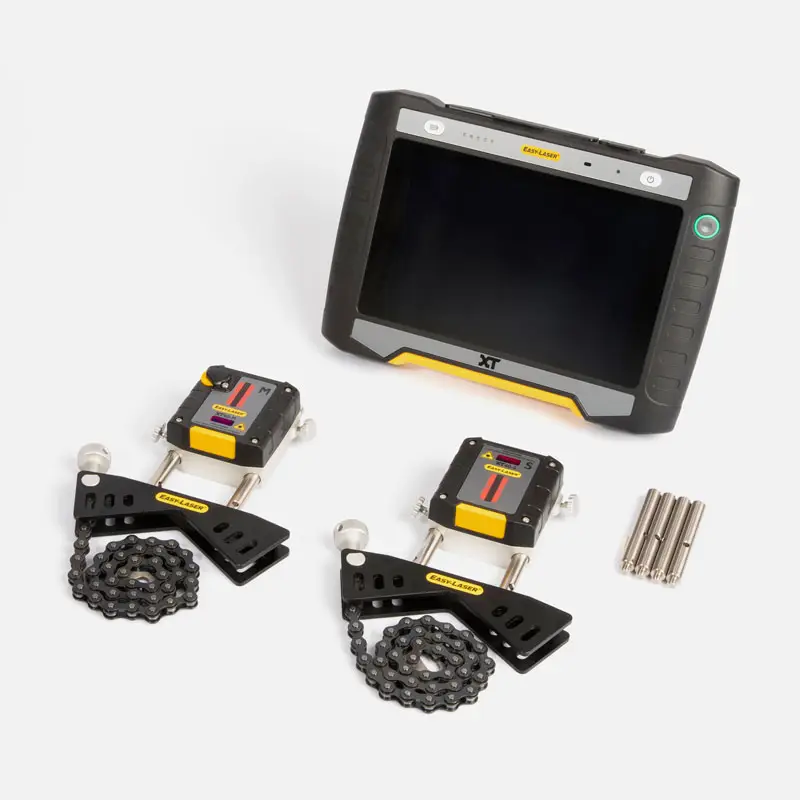

Includes:
- 1 x Display unit XT12

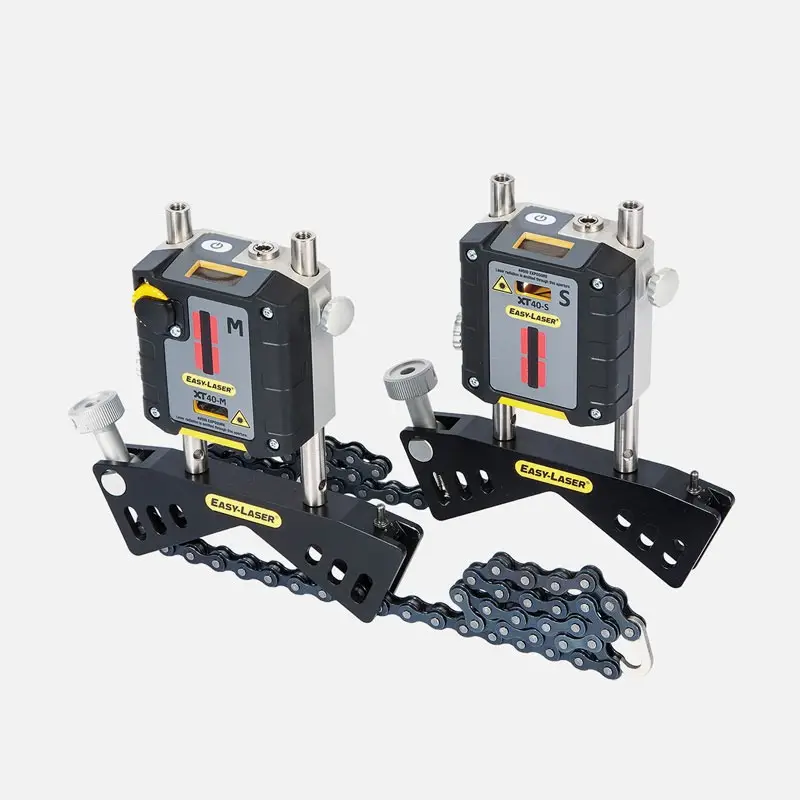

- 1 x Measuring unit XT40-M
- 1 x Measuring unit XT40-S
- 2 x Shaft brackets with chains and rods
- 4 x Rods 75 mm
- 1 x Measuring tape 3 m
- 1 x Rod tightening tool
- 1 x Charger (100–240 V AC)
- 1 x DC split cable for charging
- 1 x DC to USB adapter, for charging
- 1 x Quick reference manual
- 1 x Cleaning cloth for optics
- 1 x USB memory with manuals

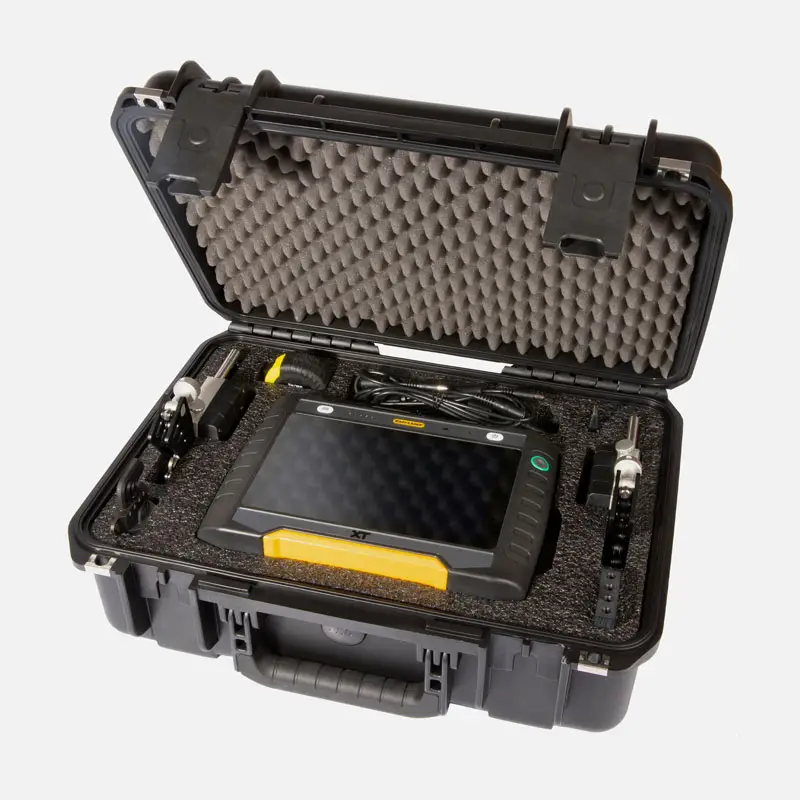

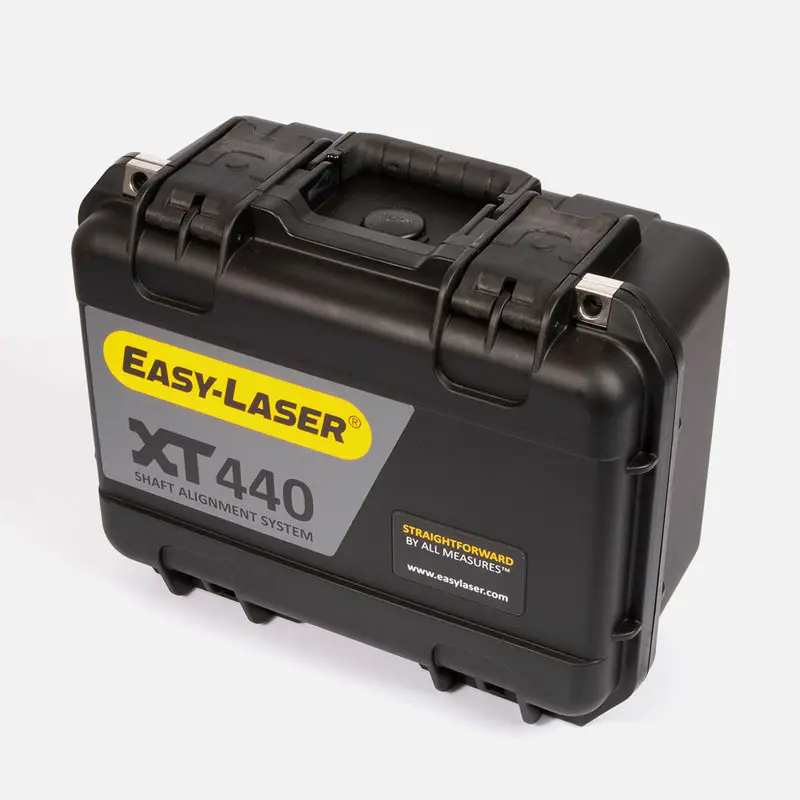

- 1 x Carrying case Small (335x280x130 mm, 3.8 kg)
The XT440 Product FAQ
1. What is your entry-level laser shaft alignment kit?
The Easy-Laser XT440 which can be ordered with a rugged tablet display or the OEM XT12 display unit.
2. What is your price range for Easy-Laser shaft systems, and do you have stock?
Prices ex VAT. XT440 - R105,000, XT660 - R165,000, XT770 - R276,000. Always in stock.
3. Do the Easy-Laser systems come with software?
+ Yes, the software is App based and free from the Apple App Store or Google Play Store. You may load the free software on any number of Smart Devices.
4. Are any additional programs/applications free of charge?
Yes. All the programs are loaded in the App. They become active once you connect the relevant accessory or laser transmitter to the display unit.
5. Which accessories can be added to the XT440?
The XT190 Belt Alignment and XT280 Vibration Measurement Tools can be added with their programs already installed.
6. Do you offer local calibration?
Yes, Engineering Dynamics is an accredited Easy-Laser Service Center. All systems to be calibrated every 12 months, very short 48 Hours turnaround at a cost of R15,500.00 ex VAT per unit.
