PRODUCT INFO
- 360° Live – Adjust in vertical and horizontal directions at the same time with lasers in any position.
- Dual Beam, 2 axis dot laser system for longer spans and complex measurements.
- Programs for Machine trains (unlimited) and Cardan/Offset Shafts
- Measure Straightness, Flatness, Squareness and Parallelity
- Multi-Point, Continuous & Uncoupled Sweep measurement methods
- EasyTrend function for live thermal expansion monitoring
- Digital Belt Alignment Tool Integration XT190
- Vibrometer Tool Integration XT280
- Built-in Thermal and Digital Camera on XT12 Display
- The free XT Alignment app runs on Android and iOS devices with all functions included.
- Measurement Range up to 20m
- Shaft Diameters up to 250mm and with extension chains up to 450mm.

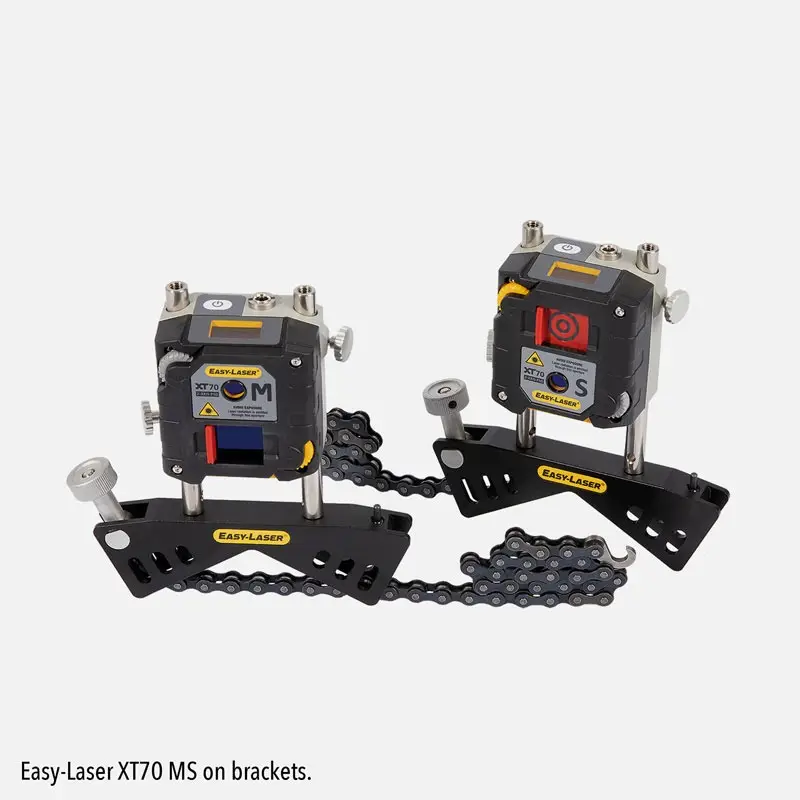

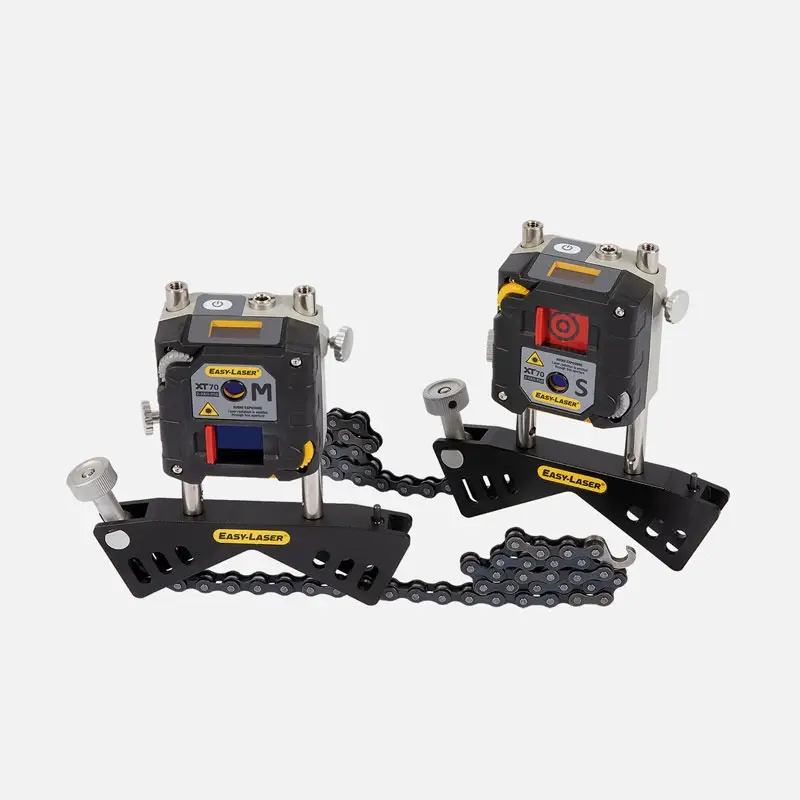

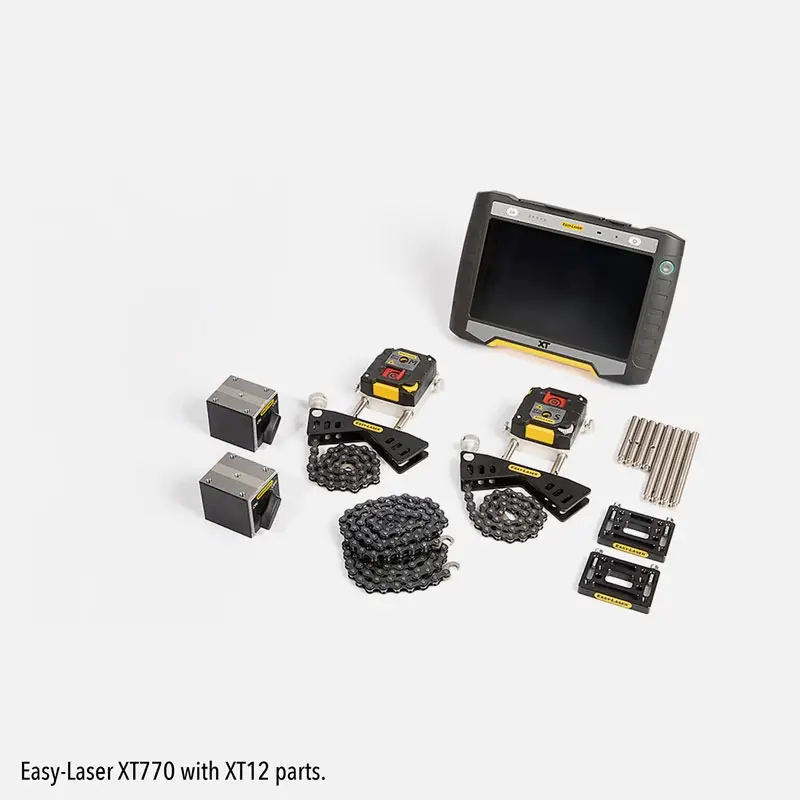

- 1 x Measuring unit XT70-M
- 1 x Measuring unit XT70-S
- 2 x Shaft brackets with chains and rods 120 mm
- 4 x Rods 75 mm
- 4 x Rods 120 mm
- 2 x Magnet bases
- 2 x Offset brackets
- 2 x Extension chain 900 mm
- 1 x Measuring tape 3 m
- 1 x Hexagon wrench set
- 1 x Charger (100–240 V AC)
- 1 x DC split cable for charging
- 1 x DC to USB adapter, for charging
- 1 x Quick reference manual
- 1 x Cleaning cloth for optics
- 1 x USB memory with manuals
- 1 x User documentation

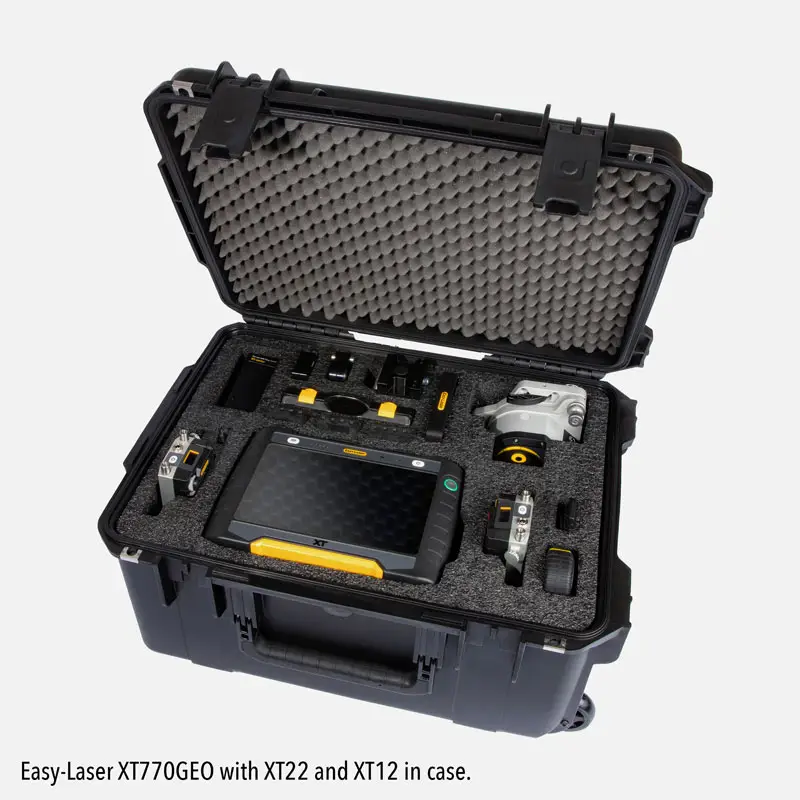

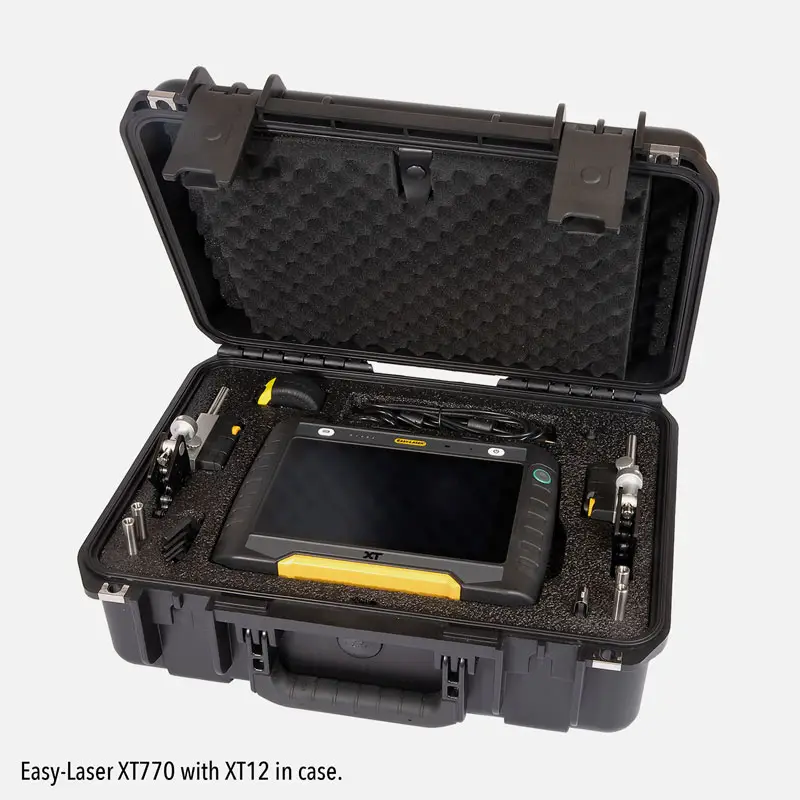

- 1 x Carrying case Large (or Large Geo)
Part No. 12-1095 and 12-1127, also include:
- 1 x Display unit XT12
- 1 x Shoulder strap for display unit – optional
Part No. 12-1127 and 12-1128 also include:

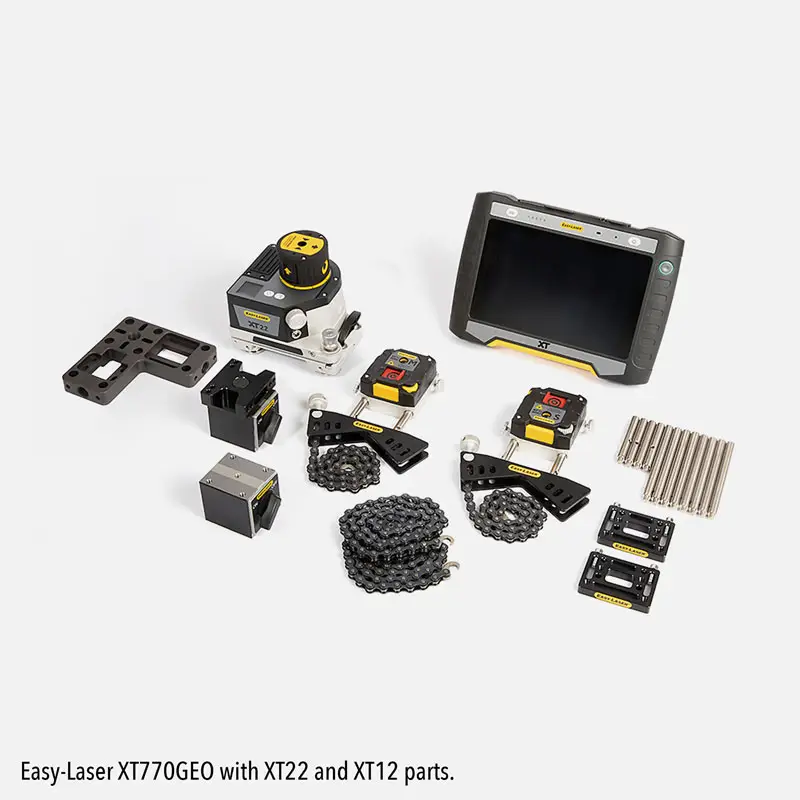

- 1 x Laser transmitter XT22
- 1 x Magnet base with turnable head (replaces one of the regular magnet bases)
- 4 x Rods 120 mm
Customize your XT12 (Note that these options cannot be retrofitted):
- IR Camera added to XT12
- Digital camera (and LED light) removed from XT12
The XT770 Product FAQ
1. Where does the Easy-Laser XT770 fit in the range of Easy-Laser alignment systems?
The Easy-Laser XT770 is the top of the range of the Easy-Laser Shaft alignment systems. It can be ordered with a rugged tablet display or the OEM XT12 display unit.
2. What makes the XT770 unique?
This dual dot laser system allows for greater accuracy over all distances, >20m, and it has additional advanced measurement methods compared to the XT660. It Dynamic trend, 360Live, Advanced Flatness and many more. It also forms the basis for Geometric expansion like Flatness, Straightness, Bore Center and many more. A complete laser measurement tool!
3. What is your price range for Easy-Laser shaft systems, and do you have stock?
Prices ex VAT. XT440 - R105,000, XT660 - R165,000, XT770 - R276,000. Always in stock.
4. Do the Easy-Laser systems come with software?
Yes, the software is App based and free from the Apple App Store or Google Play Store. You may load the free software on any number of Smart Devices.
5. Are any additional programs/applications free of charge?
Yes. All the programs are loaded in the App. They become active once you connect the relevant accessory or laser transmitter to the display unit.
6. Which accessories can be added to the XT770?

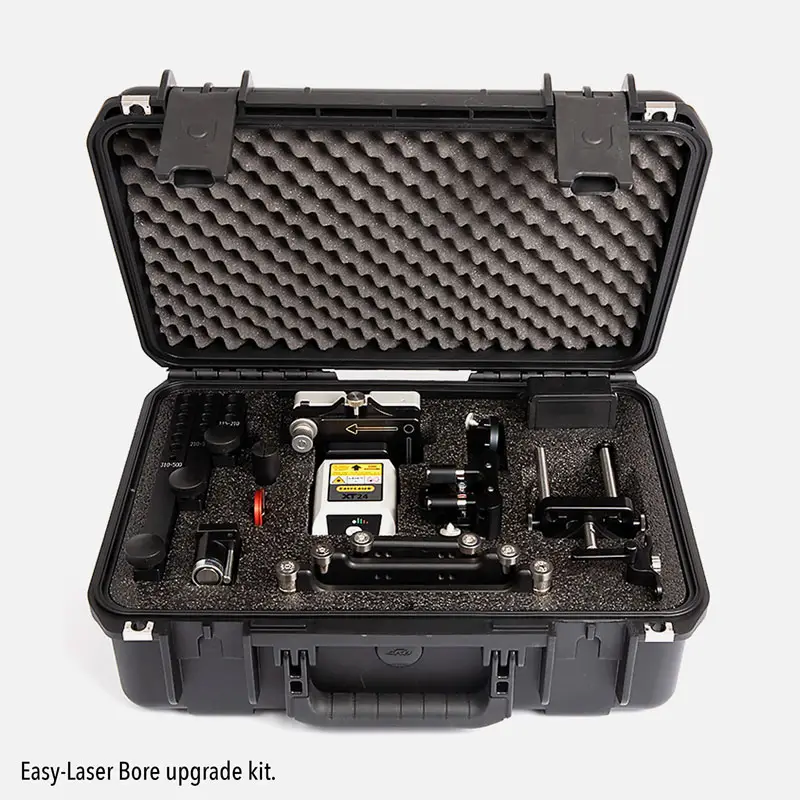

The XT190 Belt Alignment and XT280 Vibration Measurement Tools can be added with their programs already installed. Additional laser transmitters like the XT20 or 22 swivel laser for Flatness and Straightness and the XT24 for Bore Center
7. Do you offer local calibration?
+ Yes. We offer instrument training and the unique Competency Based 4-day training course, aligned to the ANSI/ASA S2.75-2017/Part 1 standard monthly at our Pretoria training center. However, we also offer onsite training for corporate groups anywhere in South Africa or African countries. See our website at https://edprevent.com/training/shaft-alignment-training/.
8. Do you offer laser shaft alignment training and training on the laser systems?
+ Yes. We offer instrument training and the unique Competency Based 4-day training course, aligned to the ANSI/ASA S2.75-2017/Part 1 standard monthly at our Pretoria training center. However, we also offer onsite training for corporate groups anywhere in South Africa or African countries. See our website at https://edprevent.com/training/shaft-alignment-training/.
