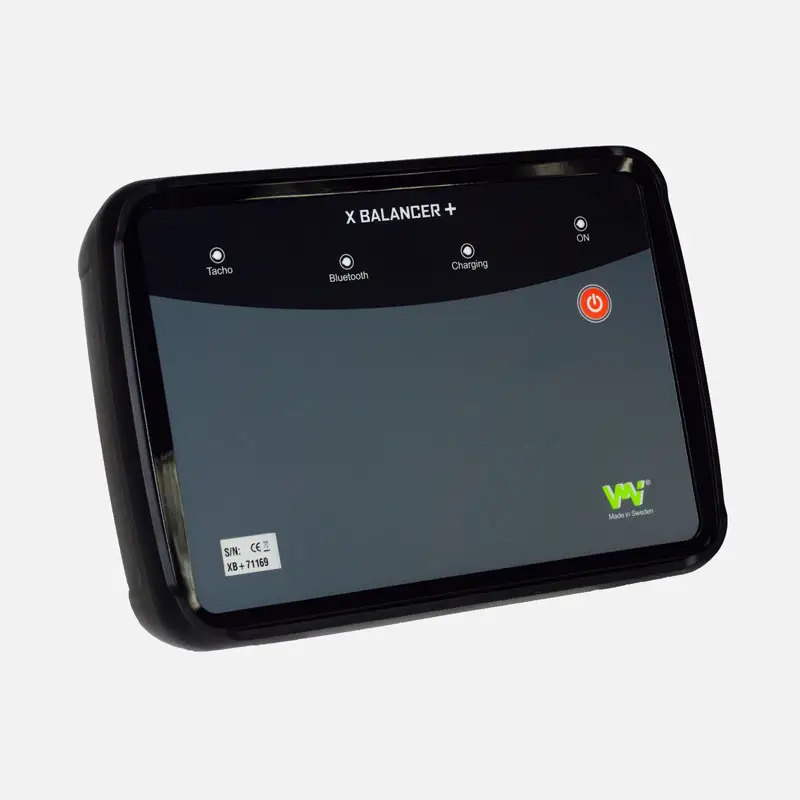

X Balancer +
The Wireless X BALANCER + can be used with any Smart device, Android or iOS!
Up to 20 meters away from the rotor to be balanced – very safe. This is one of the most cost effective 2 plane balancing kits on the market.
Features:
- Easy to use, all necessary knowledge is available in the tablet.
- Can be used for all rotating machines like Pumps, Fans, Mills, Stirrers, Blowers
- Speed range – from low 30 RPM to 180 000 RPM.
- Balancing can be performed in accordance with ISO Standards
- Best price/performance ratio
- Balancing in 1 or 2 planes.
- Change of measuring units while operating
- Each balancing job can be stored in the Machine Library
- Weight distributions to fixed positions like fan blades for precise balancing. Weight removal included.
- Ability to measure the vibration spectrum before and after the balancing. Appear in balancing report
- 12 hours of continuous battery life.
- The X-Balancer + includes all necessary Cables and Sensors to perform 2-plane balancing
- All standard type rotors are available in software
- X-Balancer communication is Industrial Bluetooth
- 12 Months Warranty
In the box
Datasheet
In the box
- X-BALANCER + instrument
- 2 accelerometers with magnets
- External optical tacho, holder for tacho, flexible magnet support, polarized reflective tape
- Scale
- 1 x 5m tacho cable
- 2 x 5m transducer cables
- Carrying case
- Optional Tablet with pre-installed software.
Datasheet
